Source Your High-Temperature Teflon Hose from a Trusted China Manufacturer（Besteflon）
High Temperature Resistant PTFE Hose Factory
High Temperature Resistant PTFE Hose is a highly versatile material that excels in high-temperature applications. Our company, located in Huizhou, Guangdong, has been specializing in the production of PTFE hose for 20 years, and we have honed our expertise to deliver top-quality products that meet the most demanding requirements.
Choose Your High-temperature Teflon (PTFE) Hose
High-temperature Teflon (PTFE) hose provides exceptional thermal stability（-65°C-260°C） over a wide temp range. Its chemical inertness prevents corrosion from aggressive chemicals, reducing maintenance and extending lifespan. The non-stick, low-friction surface guarantees smooth, efficient flow by preventing material buildup. It's a reliable, high-performance solution with excellent electrical insulation properties.
| Size | 1/8" --- 2" |
| Material | AISI 304, 316, |
| Type | Ferrule\ adapter\nut\thread fitting\flange\sanitary quick fitting,etc. |
| Standard | BSP,JIC,NPT,DIN,Metric, |
| Certificate | ISO 9001:2008 ,IATF16949,SGS,FDA, |
| Package | Products with plastic cover, Packaged in plastic bag, then in carton boxes, thenCarbon boxes wooden pallet or as per customers' request. |
| Customized: | Standard or Non-standard as per sample or drawing are all available. |
| Temperature Resistance | -65℃ to +260℃,（-85℉-500℉） |

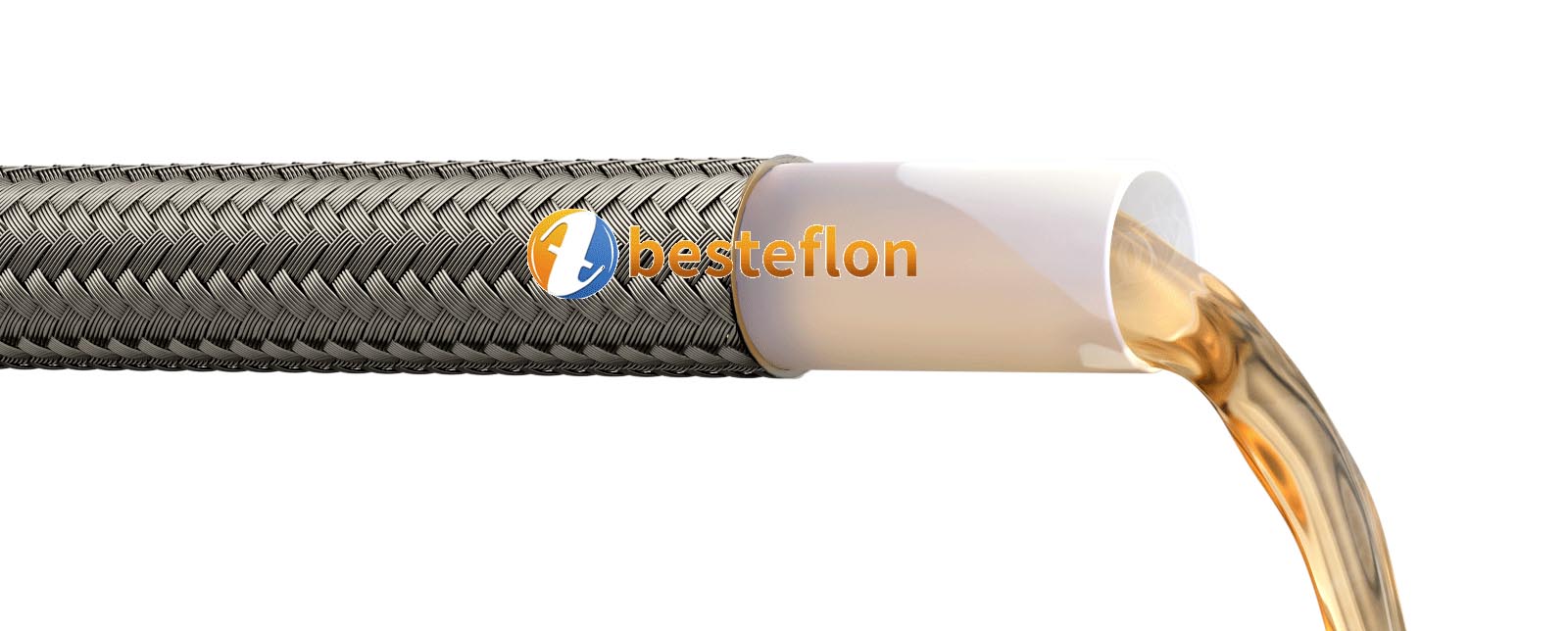

Introduction to Structure and Materials
Our company offers high-quality Teflon hoses. Here is a brief introduction to each layer and its features:
1. PTFE Inner Tube
The innermost layer of our hose is made from pure PTFE material. This ensures excellent chemical resistance and smooth flow of fluids. The PTFE inner tube has remarkable high-temperature resistance, capable of withstanding temperatures up to 260 degrees Celsius. This makes it ideal for applications involving hot fluids or gases. Additionally, its non-stick properties prevent material buildup, ensuring consistent performance over time.
2. Stainless Steel Braiding
The second layer consists of stainless steel braiding, which provides mechanical strength and durability to the hose. We use either 304 or 316 stainless steel wires for braiding, depending on the specific requirements of the application. This braiding enhances the hose's ability to withstand higher pressures, making it suitable for demanding industrial environments. The stainless steel also adds corrosion resistance, further extending the hose's service life.
3. Optional Layers
To further customize our PTFE hoses, we offer optional outer layers. These can include materials such as PU (polyurethane), PVC (polyvinyl chloride), or silicone. These outer layers provide additional protection against abrasion, UV exposure, and other environmental factors. For example, a silicone outer layer can enhance the hose's flexibility and high-temperature resistance, making it suitable for applications where both heat and flexibility are critical.
Overall, our PTFE hoses are designed with high-temperature resistance as a key attribute, ensuring reliable performance in a wide range of industrial applications.
Key Performance Parameters
This is our best-selling series. Please refer to the specifications and data.
| No. | Inner diameter | Outer diameter | Tube Wall Thickness |
Working pressure | Burst pressure | Minimum bending radius | Specification | sleeve size | ||||||
| (inch) | (mm±0.2) | (inch) | (mm±0.2) | (inch) | (mm±0.1) | (psi) | (bar) | (psi) | (bar) | (inch) | (mm) | |||
| ZXGM111-03 | 1/8" | 3.5 | 0.220 | 5.6 | 0.039 | 1.00 | 3582 | 247 | 14326 | 988 | 2.008 | 51 | -2 | ZXTF0-02 |
| ZXGM111-04 | 3/16" | 4.8 | 0.315 | 8.0 | 0.033 | 0.85 | 2936 | 203 | 11745 | 810 | 2.953 | 75 | -3 | ZXTF0-03 |
| ZXGM111-05 | 1/4" | 6.4 | 0.362 | 9.2 | 0.033 | 0.85 | 2646 | 183 | 10585 | 730 | 3.189 | 81 | -4 | ZXTF0-04 |
| ZXGM111-06 | 5/16" | 8.0 | 0.433 | 11.0 | 0.033 | 0.85 | 2429 | 168 | 9715 | 670 | 3.622 | 92 | -5 | ZXTF0-05 |
| ZXGM111-07 | 3/8" | 9.5 | 0.512 | 13.0 | 0.033 | 0.85 | 1958 | 135 | 7830 | 540 | 4.331 | 110 | -6 | ZXTF0-06 |
| ZXGM111-08 | 13/32" | 10.3 | 0.531 | 13.5 | 0.033 | 0.85 | 1894 | 128 | 7395 | 510 | 5.157 | 131 | -7 | ZXTF0-06 |
| ZXGM111-10 | 1/2" | 12.7 | 0.630 | 16.0 | 0.039 | 1.00 | 2272 | 113 | 6818 | 450 | 7.165 | 182 | -8 | ZXTF0-08 |
| ZXGM111-12 | 5/8" | 16.0 | 0.756 | 19.2 | 0.039 | 1.00 | 1233 | 85 | 4930 | 340 | 8.307 | 211 | -10 | ZXTF0-10 |
| ZXGM111-14 | 3/4" | 19.0 | 0.902 | 22.9 | 0.039 | 1.00 | 1051 | 73 | 4205 | 290 | 13.307 | 338 | -12 | ZXTF0-12 |
| ZXGM111-16 | 7/8" | 22.2 | 1.031 | 26.2 | 0.039 | 1.00 | 870 | 60 | 3480 | 240 | 16.575 | 421 | -14 | ZXTF0-14 |
| ZXGM111-18 | 1" | 25.0 | 1.161 | 29.5 | 0.059 | 1.50 | 798 | 55 | 3190 | 220 | 21.220 | 539 | -16 | ZXTF0-16 |
| ZXGM111-20 | 1-1/8" | 28.0 | 1.299 | 33.0 | 0.059 | 1.50 | 725 | 50 | 2900 | 200 | 23.622 | 600 | -18 | ZXTF0-18 |
| ZXGM111-22 | 1-1/4" | 32.0 | 1.496 | 38.0 | 0.079 | 2.00 | 653 | 45 | 2610 | 180 | 27.559 | 700 | -20 | ZXTF0-20 |
| ZXGM111-26 | 1-1/2" | 38.0 | 1.732 | 44.0 | 0.079 | 2.00 | 580 | 40 | 2320 | 160 | 31.496 | 800 | -24 | ZXTF0-24 |
| ZXGM111-32 | 2" | 50.0 | 2.224 | 56.5 | 0.079 | 2.00 | 435 | 30 | 1740 | 120 | 39.961 | 1015 | -32 | ZXTF0-32 |
* Meet SAE 100R14 standard.
* Customer-specific products may be discussed with us for detailed.
Work Directly with Manufactuer Boost Your Profits and Efficiency
As a leading manufacturer of ptfe hose products, our factory’s core team has over 20 years of R&D and production experience in the ptfe hose industry. Our business spans more than 50 countries, providing efficient export services to our customers.
Application of High-temperature Teflon hose
High-temperature Teflon hose are renowned for their remarkable high-temperature resistance, which is a key attribute that makes them indispensable in various industrial applications. Here are five industries where PTFE hoses are widely used, leveraging their high-temperature capabilities:

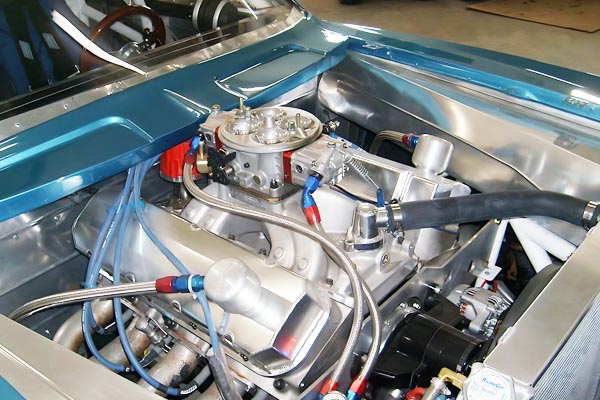

1. Automotive Industry
In the automotive sector, PTFE hoses are used for brake lines, fuel lines, and coolant systems. Their high-temperature resistance ensures they can withstand the extreme heat generated by engines and braking systems, maintaining durability and reliability even at elevated temperatures.

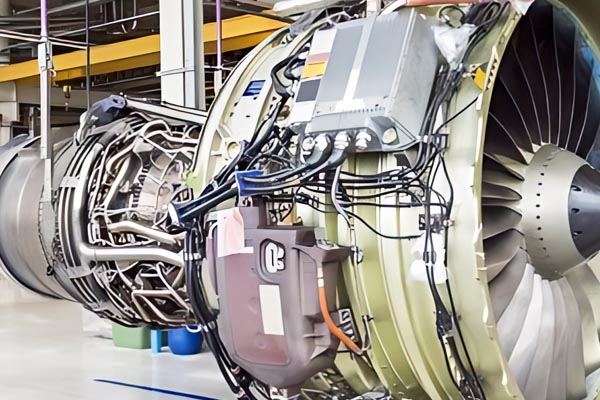

2. Aerospace Industry
PTFE hoses are crucial in aerospace applications, such as hydraulic systems, fuel lines, and avionics cooling. These hoses can operate at high temperatures without degrading, ensuring the safe and efficient transfer of fluids in aircraft, where high-temperature resistance is critical for safety and performance.

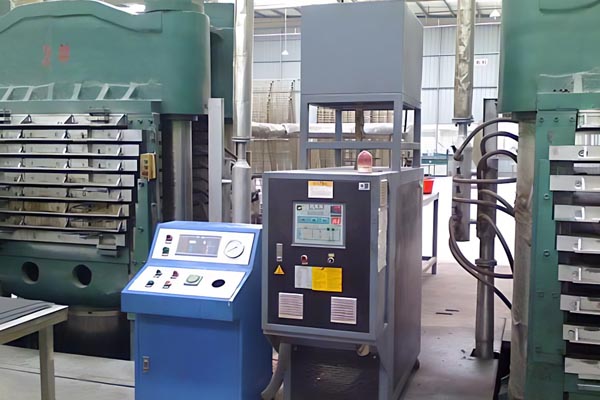

3. Chemical Processing Industry
PTFE hoses are extensively used in chemical processing plants for transferring corrosive chemicals and high-temperature fluids. Their ability to withstand high temperatures and resist chemical attack makes them ideal for handling acids, alkalis, and solvents, ensuring safe and reliable operations.

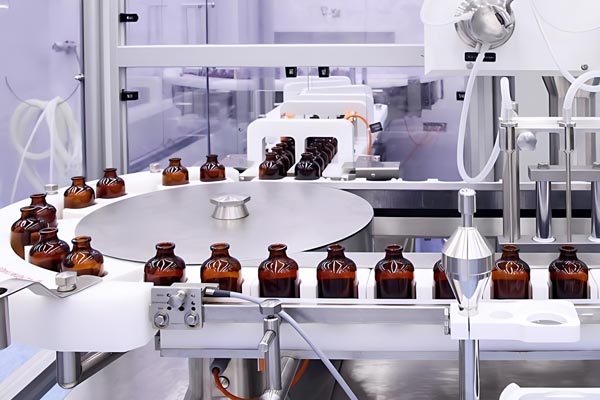

4. Pharmaceutical Industry
In pharmaceutical manufacturing, PTFE hoses are used for transferring sensitive and high-value fluids. Their high-temperature resistance ensures that they can handle heated processes without compromising the integrity of the pharmaceutical products, while their chemical inertness prevents contamination.

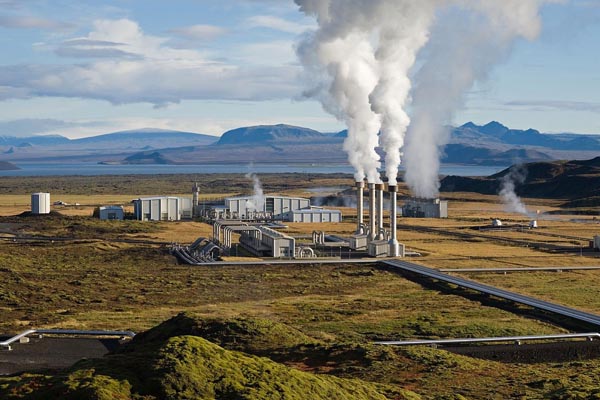

5. Power Generation Industry
PTFE hoses are used in power plants for applications such as steam lines and high-temperature fluid transfer. Their high-temperature resistance allows them to withstand the extreme temperatures associated with steam and other high-temperature processes, ensuring reliable and efficient operation.
In all these industries, the high-temperature resistance of PTFE hoses is a critical factor that ensures their reliability, durability, and safety in demanding applications.
Best PTFE Hose Manufacturer & Factory
We have been specialized in ptfe hose, conductive ptfe hose,ptfe braided hose, ptfe brake hose and ptfe hose assembly for 20 years. We have sets of production equipment and testing system. Our products with good performance and competitive price are selling at home and abroad.
In addition, all of our raw materials are selected from the qualified brands, such as DuPont, DAIKIN, domestic top level brand.
Here are some reasons why customers should choose our Besteflon company for High-temperature Teflon hose:
1. Direct Manufacturer with 20 Years of Experience
- We are a direct manufacturer specializing in PTFE hoses. With over 20 years of experience in the industry, we have refined our production processes to ensure the highest quality and reliability.
- Our extensive experience means we can handle a wide range of applications and provide expert advice.
2. 100% Pure PTFE Material
- Our PTFE hoses are made from 100% pure PTFE, ensuring excellent chemical resistance, low friction, and high durability.
- This high-quality material guarantees long-lasting performance and reliability in various industrial applications.
3. Stringent Quality Control
- We maintain strict quality control throughout the production process, from material selection to final inspection.
- Every hose is thoroughly tested to meet industry standards and customer requirements, ensuring consistent quality.
4. OEM Customization
- We offer comprehensive OEM customization services to meet your specific needs.
- Whether you need custom lengths or fittings, we can tailor our products to fit your application perfectly.
5. Global Sales Network
- Our products are sold both domestically and internationally, with a strong presence in major overseas markets, especially Europe and the United States.
- We have a wide customer base and a proven track record in the global market.
6. Professional English Communication Team
- Our dedicated team of professionals is fluent in English, ensuring seamless communication and support.
- We can provide technical advice, quotations, and after-sales service in English, making it easy for international customers to work with us.
7. Wide Range of Applications
- Our PTFE hoses are suitable for a variety of industries, including chemical processing, pharmaceuticals, automotive, aerospace, and more.
- They are ideal for applications requiring high flexibility, chemical resistance, and temperature resistance.
Choose us for your PTFE hose needs and benefit from our expertise, quality, and global reach. We are committed to providing you with the best products and services to meet your requirements.
Certificate
IS09001:2015 | RoHS Direcive (EU)2015/863 | USFDA21 CFR 177.1550 | EU GHS SDS | ISO/TS 16949
FDA
IATF16949
ISO
SGS
Get Wholesale Prices & Custom Requests
FAQ About High-temperature Teflon hose
1、What temperature can your PTFE hose withstand?
Up to 260℃ (500℉), suitable for extreme heat.
2、Is your PTFE hose safe for high-pressure steam?
Yes, our PTFE hoses are engineered to be safe and reliable for high-pressure steam applications. PTFE is renowned for its exceptional chemical resistance and thermal stability, withstanding temperatures up to 260°C, which is well-suited for steam environments. Our hoses are reinforced to handle significant pressures, ensuring durability and safety even under demanding conditions. Additionally, PTFE's non-reactive nature means it won't degrade or corrode when exposed to steam, maintaining its integrity over time. We also conduct rigorous testing to ensure each hose meets stringent industry standards for pressure and temperature resistance. When selecting a hose for high-pressure steam, it's important to consider the specific operating parameters of your system, and our hoses are designed to meet those needs while providing long-term reliability and performance.
3、Can I get custom lengths or fittings?
Yes, we offer OEM services including size, fittings, and packaging.
4、Do you ship worldwide?
Yes, we export to the USA, Europe, Southeast Asia, and more.
5、What is the minimum order quantity (MOQ)?
Our standard minimum order quantity is 200 meters. However, if the specification you require is one that we produce regularly and we have it in stock, you can order without meeting the minimum order quantity.
