Short Description:

PTFE braided hose is a flexible hose of excellent quality and low price. Made of 100% virgin PTFE inner tube and 304 / 316 steel wire braided.

This product can be compatible with all fuels, oil, nitric acids (including brake fluid and clutch fluid). Also suitable for a variety of fluid, hydraulic, air compressors, or gas applications.

The outer layer can be covered with PVC/PU coating or braid polyester wire, and the hose can be assembled with AN series fittings.

Characteristics: high temperature and high pressure resistance, corrosion resistance, light weight, high strength, good elasticity, not easy to damage, durable, long service life.

  • Series model: ZXGM101-R14
  • Product Detail



    Product Tags

    PTFE hose is lined with PTFE hose. Smooth Bore PTFE Flexible Hose has PTFE lining and braided or rubber cover.

    The hose liner can be black conductive polytetrafluoroethylene (Teflon) to deal with the problem of dielectric static electricity, or it can be white non-conductive polytetrafluoroethylene.

    The type of hose cover depends on the application.

    The end fittings of the polytetrafluoroethylene (PTFE) hose are crimped or extruded.

    Related Searches: PTFE smooth bore flexible hose

    ptfe hose

    Product Details

    PTFE braided hose is made from the PTFE inner tube and 304 / 316 stainless steel wire braided.

    It has the function of protecting inner tube and increasing pressure. It is a very lightweight and flexible hose. This flexible hose is widely used in a wide range of applications, including demanding compressed gases and industrial applications.Low friction surfaces of smooth inner diameter hoses provide high flow rates, and these hoses are easy to drain and / or clean.

    PTFE hose is highly compatible with all automotive fluids and has a very wide operating temperature range. It can also extend its service life in any fuel and is the best option for the fuel system. The most fuel hoses used previously were rubber hoses, but now more and more people are being replaced by PTFE hoses as it is mainly used to increase temperature range compatibility, chemical resistance, flexibility, and impact resistance. Because it doesn't harden, microbreak, or penetrate the fuel steam (steam-walk) like ordinary rubber braided lines, minimizing the fuel smell in the vehicle's storage area. Although the PTFE hose is less flexible than the rubber hose, it is stronger and does not allow fluid into the inner hole .It is precisely because of this particular property and high chemical / temperature tolerance that makes it a popular choice for engineers and facilities.

    If you have a project need to use with our products, please contact me with us. We can create the best solution for your specific application needs. Choosing the right PTFE hose manufacturer is critical to achieving the best hose components for your most critical fluid transfer applications.

    Our custom, precision-processed accessories will provide truly reliable hose components for all your demanding applications.


    Brand Name:


    Material:  PTFE
    Specification:  1/8'' to 1''
    Thickness:  0.65/0.8/0.9/1/1.2MM
    Inside hose color: milky white/translucent
    Temperature range: -65℃--+260℃
    Wire braided: 304/316 stainless steel wire braided
    Appliecation: Chemical/Machinery equipment//Compressed gas/Fuel and lubricant handling/Steam transfer/Hydraulic systems/Steam Lines/Tire Presses/High Temperature Hydraulic/Air Applications/Chemical and Acid Transfer

    PTFE hose specifications

    No. Inner diameter Outer diameter Tube Wall
    sleeve size
    (inch) (mm±0.2) (inch) (mm±0.2) (inch) (mm±0.1)
    ZXGM121-03 1/8" 3.2 0.248 6.3 0.035 0.9 ZXTF0-02
    ZXGM121-04  3/16"  4.8  0.299 7.6  0.025  0.65  ZXTF0-03
    ZXGM121-05  1/4"  6.4  0.366  9.3  0.025  0.65  ZXTF0-04
    ZXGM121-06  5/16"  8.0  0.433  11.0  0.025  0.65  ZXTF0-05
    ZXGM121-07  3/8"  9.5  0.492  12.5  0.025  0.65  ZXTF0-06
    ZXGM121-08  13/32"  10.3  0.523  13.3  0.025  0.65  ZXTF0-06
    ZXGM121-10  1/2"  12.7  0.625  15.9  0.031  0.80  ZXTF0-08
    ZXGM121-12 5/8"  16.0  0.755  19.2  0.031  0.80  ZXTF0-10
    ZXGM121-14 3/4" 19.0  0.874  22.2  0.035  0.90  ZXTF0-12
    ZXGM121-16  7/8" 22.2  1.023 26.0  0.039  1.00  ZXTF0-14
    ZXGM121-18    1"  25.2  1.146  29.1  0.047  1.20  ZXTF0-16

    * Meet SAE 100R14 standard.

    * Customer-specific products may be discussed with us for detailed.

  • Previous:
  • Next:

  • What does PTFE hose mean?

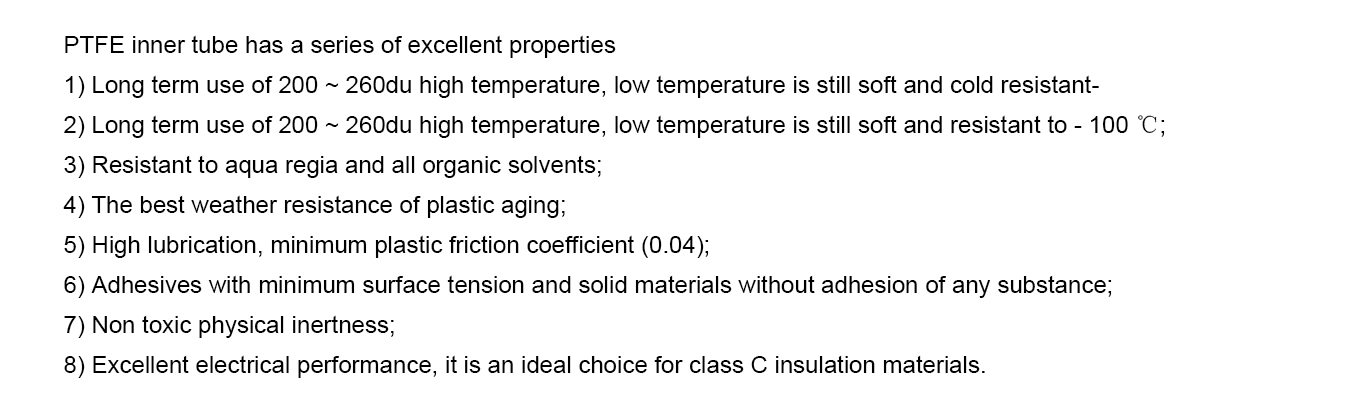

    Polytetrafluoroethylene (PTFE), which is a kind of high molecular compound, has excellent chemical stability and corrosion resistance. It is one of the best corrosion-resistant materials in the world today.

    Is PTFE good for transmission fluid?

    Polytetrafluoroethylene (PTFE) has excellent chemical stability, can withstand all strong acids, strong alkalis, strong oxidants, and does not interact with various organic solvents. It can be used normally within -60℃~+260℃, with reliable and excellent corrosion resistance. It can transport strong corrosive gas and liquid at high temperature. PTFE is non-polar, heat-resistant and non-absorbent. It also has excellent aging resistance, non-stickiness and non-combustibility. This cannot be replaced by other hoses.

    What is braided fuel hose?

    PTFE stainless steel braided hoses are ideal for street and racing applications that require E85, gasoline or methanol compatible fuel lines. Stainless steel outer braid provides impact and abrasion resistance, and protects the PTFE hoses.

    Are PTFE hose ends reusable?

    This type of tap is usually divided into two categories:

    1. Quick type fittings:

    This type of coupling can be directly installed on the pipe, and the connection purpose can be achieved without crimping, and there will be no leakage. When you need to replace it, you can directly disassemble it and replace it with a different specification connector to continue using it.

    2. Crimping type fittings:

    This kind of joint must be crimped to connect the pipe and the joint together, and it cannot be disassembled when you need to replace it. So this kind of fittings cannot be reused

    What is PTFE braided hose?

    PTFE Braided Hose is used for stainless steel hose, so that the service life of the hose is longer than rubber hose or rubber wrapped in stainless steel. It has many advantages over rubber products.

    Benefits of using PTFE

    Nylon braided hose-PTFE-helps prevent gas odors from penetrating the hose itself and allows odors in your store or garage. This type of hose resists all types of liquids and chemicals, including gas, ethanol, transmission fluid, brake fluid, power steering fluid, and antifreeze. Rubber is not as resistant to these liquids as polytetrafluoroethylene, because chemicals tend to damage rubber. If you don’t notice, the hose will eventually start to leak. If you have not noticed a gas leak, your car may catch fire, simply due to the heat in the engine room.More…

    Can you use regular AN fittings on PTFE hose?

    We have full specifications for the AN hose series, available in sizes from AN3 to AN20. Can be assembled with regular AN fitting.


    We offer the usual packing as follows

    1、Nylon bag or poly bag

    2、Carton box

    3、Plastic pallet or plywood pallet

    Customized Packaging is charged

    1、Wooden reel

    2、Wooden case

    3、Other customized packaging also available
